Last updated: 05 May 2025 • Version 1.2

Objective

This guide outlines the required configuration steps within Genesys Cloud for customers migrating from VideoEngager with Web Chat (Chat V2) to VideoEngager with Web Messenger.

Audience

• Genesys Cloud Administrators

• Technical Leads supporting frontend and QA integration

Disclaimer & Scope

Purpose: This Quick Start Guide is intended to support initial integration and testing activities by customer development and QA teams.

Out of Scope:
This document does not cover:

• Production Architect flows with business logic

• Error handling or advanced routing

• Backend or third-party integrations

Key Configuration Data

Provide the following to the frontend team integrating the VideoEngager widget:

1. Genesys Messenger Configuration & Deployment

Step 1.1: Create Messenger Configuration

1. Go to Admin → Message → Messenger Configurations

2. Click Create New

3. Set values as follows:

   • Messaging: Enabled

   • Clear Conversation: Enabled

   • Conversation Disconnect: Display status and disconnect session

   • User Interface: Off

   • Launcher Button Visibility: Hidden

   • Automatically Start Conversations: Enabled

4. Click Save

📘 Reference: Genesys Cloud Messenger Configuration Documentation

Step 1.2: Create Messenger Deployment

1. Go to Admin → Message → Messenger Deployments

2. Click Create New

3. Select the Messenger Configuration from Step 1.1

4. Assign deployment settings

5. Assign the Architect flow (after Step 2.6)

6. Click Save

📝 Record the generated Deployment ID — it's required by the frontend team.

Step 1.3: Configure Allowed Domains

1. In the Messenger Deployment (see Step 1.2), locate Allowed Domains

2. Add all domains where the VideoEngager widget will be embedded:

   • Production

   • Testing and Development

3. Click Save

Example:

yourcompany.com
test.yourcompany.com
*.dev.yourcompany.com

2. Genesys Architect Flow Configuration (Quick Start)

Step 2.1: Create Inbound Message Flow

1. Go to Admin → Architect → Inbound Message Flows

2. Click Add New

3. Fill in:

   • Flow Name: e.g., VideoEngager Web Messenger Routing

   • Default Language

   • Default Queue: Fallback queue for errors

4. Click Create Flow

Step 2.2: Create Minimal Pass-Through Flow

1. In the Architect flow editor:

   • Drag Transfer to ACD under the Start node

   • Configure:

     • Queue: e.g., VideoCall queue (define in your org)

     • Skills & Language: Leave blank

   • Add Disconnect to the Failure path

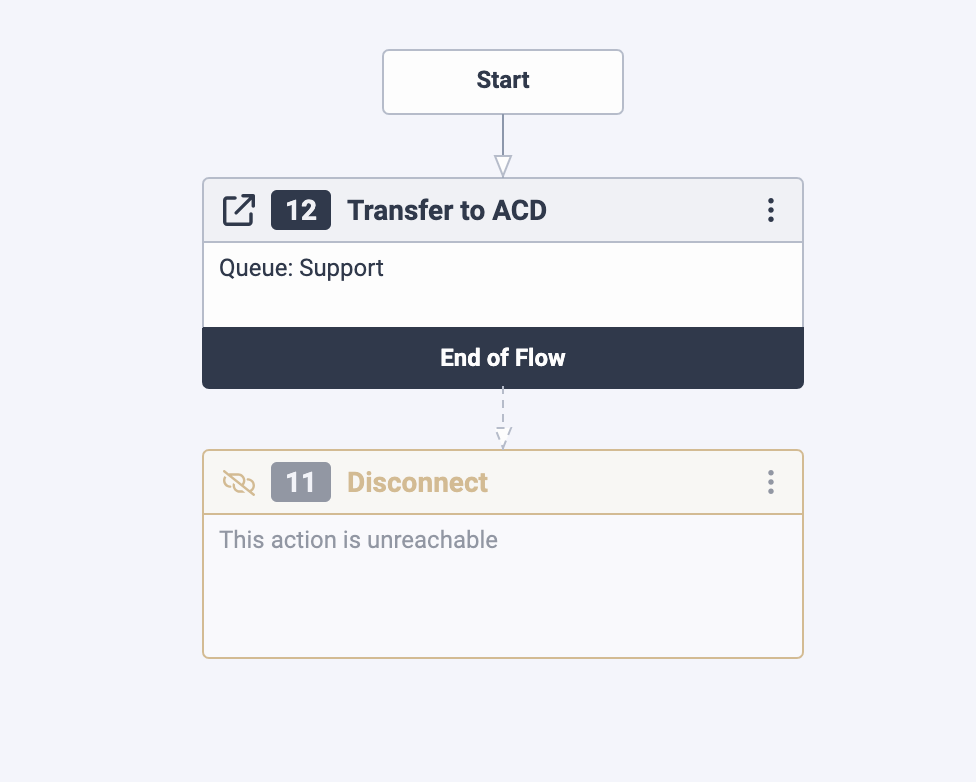

📷 Start → Transfer to ACD → Disconnect

✅ This flow enables basic message routing for integration validation.

Step 2.3: Configure Error Handling

1. Go to Event Handling → Error Event Handling

2. Set to Transfer to Queue and select a valid fallback queue

Step 2.4: (Optional) Set a Default Queue

1. Open the Data section in the flow

2. If using Flow.foundQueue, set its Initial Value to your default queue name

Step 2.5: (For Production) Enable Custom Attribute Routing

Not required for the minimal flow, but necessary for production.

Routing Attributes Used by VideoEngager:

Message.Attributes["context.queue"]
Message.Attributes["context.skills"]
Message.Attributes["context.language"]

Recommended Flow Additions:

• Use Get Participant Data to extract attributes

• Use Find Skill / Language actions

• Add Decision Blocks for fallback logic

• Route via Transfer to ACD with resolved data

📌 Confirm expected attribute names with your frontend team

Step 2.6: Save and Publish the Flow

• Click Validate to check

• Click Publish to deploy

Step 2.7: Assign Architect Flow to Deployment

1. Go back to Messenger Deployments (Step 1.2)

2. Edit the deployment

3. Under Architect Flow, select the published flow

4. Click Save

🕒 Changes may take a few minutes to reflect in Genesys Cloud
